• Presses

    4000 Ton Danly: Press #7

    4000 ton danly-large

    This press is equipped with a knockout system.
    Bed size: 84" x 236"
    Stroke: 20 inches
    Press speed: 10 to 25 strokes per minute
    Shut height: 30" to 40"
    Pass line: 20"
    Air cushions: No
    Windows (entry and exit): 86 inches wide, 62 inches tall
    T-slots: JIC on 6 inch centers, bed and ram
    Feed line: .125 - .500 x 72" | .625 x 48"
    Arbor spec: 50,000

    3000 Ton Danly: Press #9

    3000 ton danly-large

    This press is equipped with a knockout system.
    Bed size: 120" x 96"
    Stroke: 12"
    Press speed: 10 to 22 strokes per minute
    Shut height: 26" to 36"
    Pass line: 20"
    Air cushions: No
    Windows (entry and exit): 72 inches wide, 30 inches tall
    T-slots: 6"
    Feed line: .250 - .500 x 16" to 68" | .625 x 48"
    Arbor spec: 50,000

    1800 Ton Verson: Press #3

    1800 ton danly-large

    This press is equipped with a knockout system.
    Bed size: 312 x 72
    Stroke: 16 inches
    Press speed: 10 to 25 strokes per minute
    Shut height: 30 minimum, 42 maximum
    Pass line: 30 inches
    Air cushions: No
    Windows (entry and exit): 72 inches wide, 48 inches tall
    T-slots: JIC on 6 inch centers, bed and ram
    Feed line: .040 to .250 gauge by 60 inch wide, will run .312 gauge up to 30 inches wide
    Arbor spec: 30,000

    1800 Ton Verson: Press #6

    This press is equipped with a knockout system.
    Bed size: 312 x 72
    Stroke: 16 inches
    Press speed: 10 to 25 strokes per minute
    Shut height: 30 minimum, 42 maximum
    Pass line: 20 inches
    Air cushions: No
    Windows (entry and exit): 72 inches wide, 48 inches tall
    T-slots: JIC on 6 inch centers, bed and ram
    Feed line: .040 to .250 gauge by 60 inch wide, will run .312 gauge up to 30 inches wide
    Arbor spec: 50,000

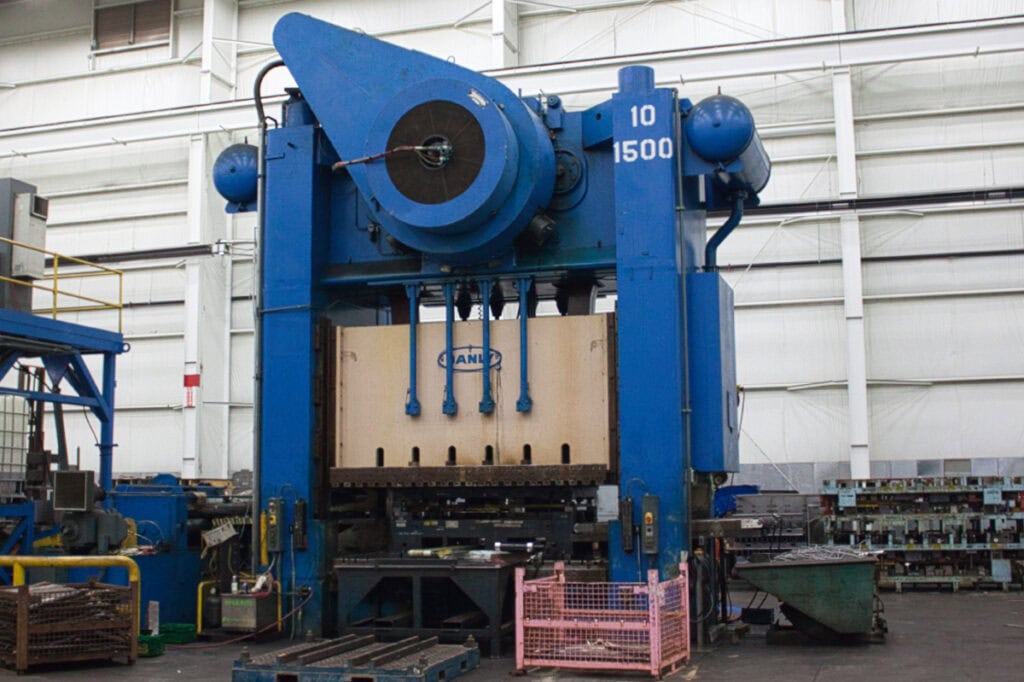

    1500 Ton Danly: Press #10

    This press is equipped with a knockout system.
    Bed size:132”x 84”
    Stroke: 12"
    Press speed:15 to 40 SPM
    Shut height:18” to 28” (Slide Down)
    Pass line: 56"
    Air cushions: No
    Windows (entry and exit):64” x 31”
    T-slots: 6"
    Feed line:.035 - .1875 x 60” wide | .250 max x 54” wide

    1250 Ton Danly: Press #1

    1250-Ton-Press-1-large

    This press is equipped with a knockout system.
    Bed size: 96 x 60
    Stroke: 16 inches
    Press speed: 10 to 25 strokes per minute
    Shut height: 28.5 minimum, 39 maximum
    Pass line: 18 inches
    Windows (entry and exit): 72 inches wide, 30 inches tall
    T-slots: JIC on 6 inch centers, bed and ramv
    Feed line: .040 to .250 gauge by 60 in. wide, .312 gauge up to 36 in. wide and .375 up to 16 in. wide
    Arbor spec: 40,000

    800 Ton Verson: Press #4

    800-Ton-Press-4

    This press is equipped with two 42"x 48" air cushions, 59.5 ton capacity each, 8" stroke.
    This press is equipped with a knockout system.
    Bed size: 108 x 48
    Stroke: 24 inches
    Press speed: 20 strokes per minute
    Shut height: 32 minimum 48 maximum
    Pass line: 20 inches
    Windows (entry and exit): 50 inches wide, 72 inches tall
    T-slots: JIC on 6 inch centers, bed and ram
    Feed line: .187 gauge by 48 inch wide, will run .250 gauge up to 24 inches wide
    Arbor spec: 50,000

    800 Ton Verson: Press #5

    800-Ton-Press-5

    This press is equipped with a knockout system.
    Bed size: 108 x 48
    Stroke: 24 inches
    Press speed: 20 strokes per minute
    Shut height: 32 minimum, 48 maximum
    Pass line: 20 inches
    Windows (entry and exit): 50 inches wide, 72 inches tall
    T-slots: JIC on 6 inch centers, bed and ram
    Feed line: .187 gauge by 42 inch wide, will run .250 gauge up to 24 inches wide
    Arbor spec: 50,000

    800 Ton Bliss: Press #2

    800-Ton-Press-2

    Bed size: 136 x 84
    Stroke: 12 inches
    Press speed: 10 to 40 strokes per minute
    Shut height: 34" minimum, 44" maximum
    Pass line: 20 inches
    Windows (entry and exit): 68 inches wide, 36 inches tall
    T-slots: JIC on 6 inch centers, bed and ram
    Feed line: .040 to .165 gauge by 60" wide | .250 gauge by 36" wide
    Arbor spec: 40,000

    800 Ton Verson: Press #8

    800-Ton-Press-8

    This press is equipped with two 44"x 37 1/4" air cushions, 57.3 ton capacity each, 8" stroke.
    Bed size: 108 x 60
    Stroke: 16 inches
    Press speed: 10 to 30 strokes per minute
    Shut height: 30" minimum, 40" maximum
    Pass line: 20 inches
    Windows (entry and exit): 42 inches wide, 30 inches tall
    T-slots: JIC on 6 inch centers, bed and ram

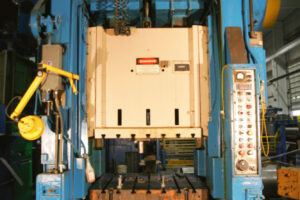

    250 Ton Niagara: Press # 0

    250 Ton Niagara: Press # 0

    Bed size: 48 x 42
    Stroke: 6 inches
    Press speed: 20 to 60 strokes per minute
    Shut height: 14 minimum, 20 maximum
    Pass line: 12 inches
    Windows: 24 inches wide, 20 inches tall
    T-slots: JIC on 6 inch centers, bed and ram
    Feed line: .187 gauge by 24 inch wide

  • Welding Machines

    Weld Cell #1

    Weld Cell #1

    5 Gun Projection Welding Machine
    3 Dengensha Nut Feeders
    3 150 FVA Transformers

    Weld Cells #2 - #10

    Weld Cell #2

    Motoman Arc World II Weld Cell
    SK 6 6 axis Robot
    Motoarc 350I Welder
    Turntable

  • Leveling Machine

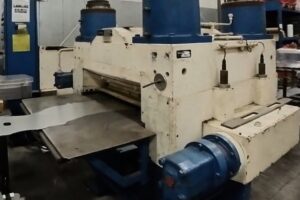

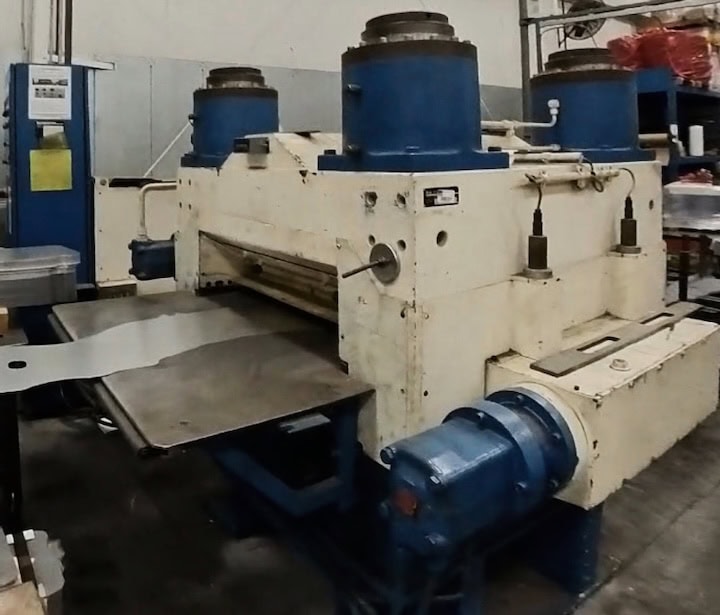

    Hammerle Leveling Machine

    Hammerle Leveling Machine

    Can level multiple grades of steel, stainless steel, and aluminum from 0.020" up to 0.5" thick
    Can roll blanks to within 0.005" flat
    Uses 19 rollers to process blanks up to 29” wide with a minimum length of 4”
    Fabricated to ISO 9001:2015 standards
